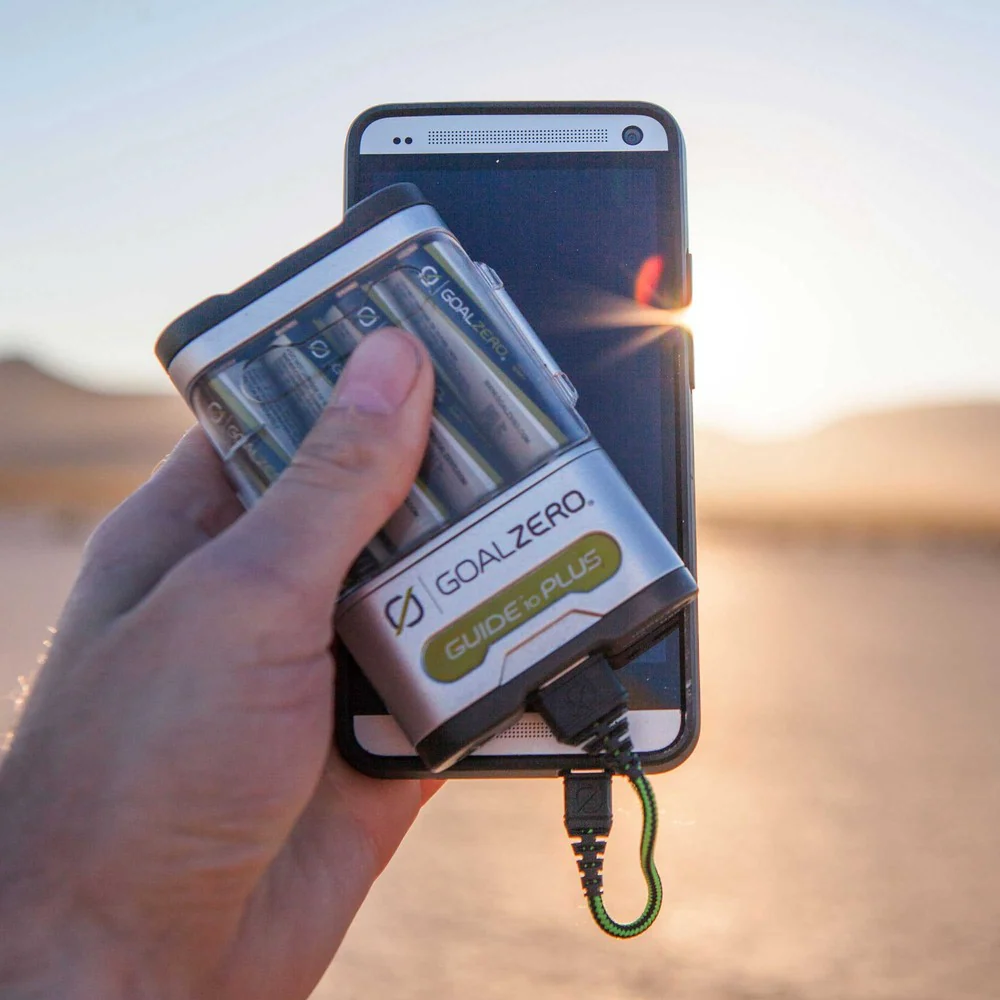

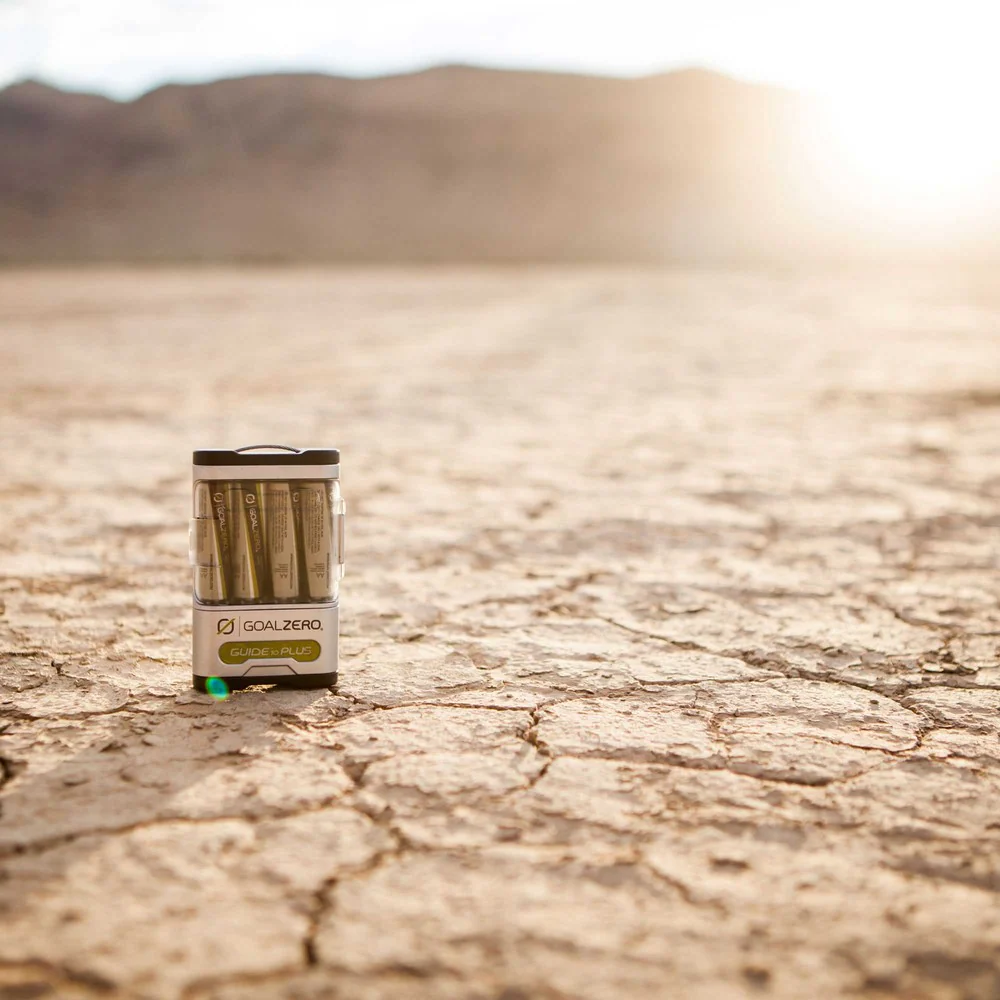

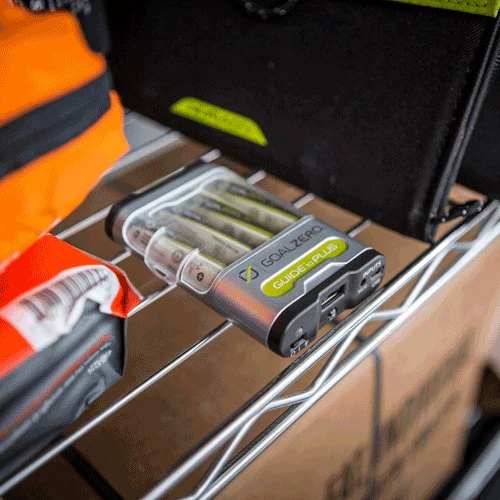

Charge AAs from the sun or any USB port, then power your phone, wearable, GPS, or perk up your tablet in a pinch.

features

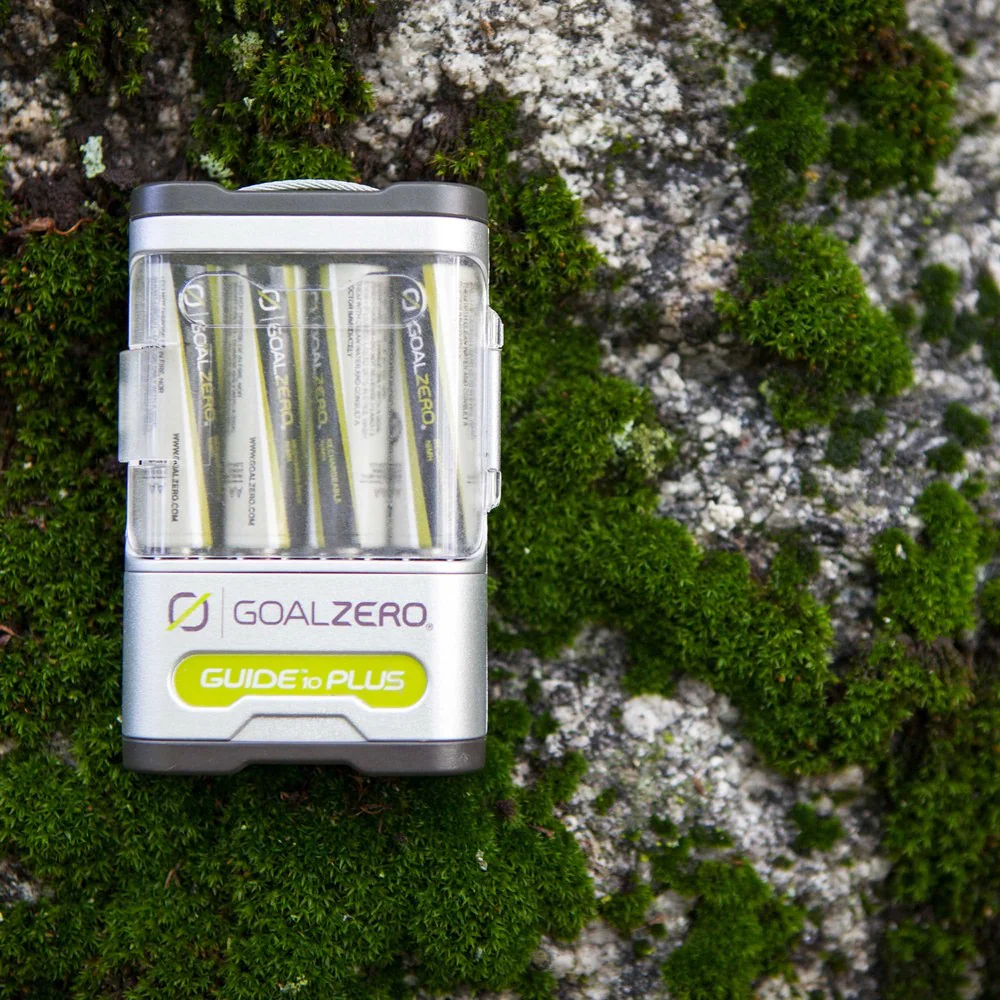

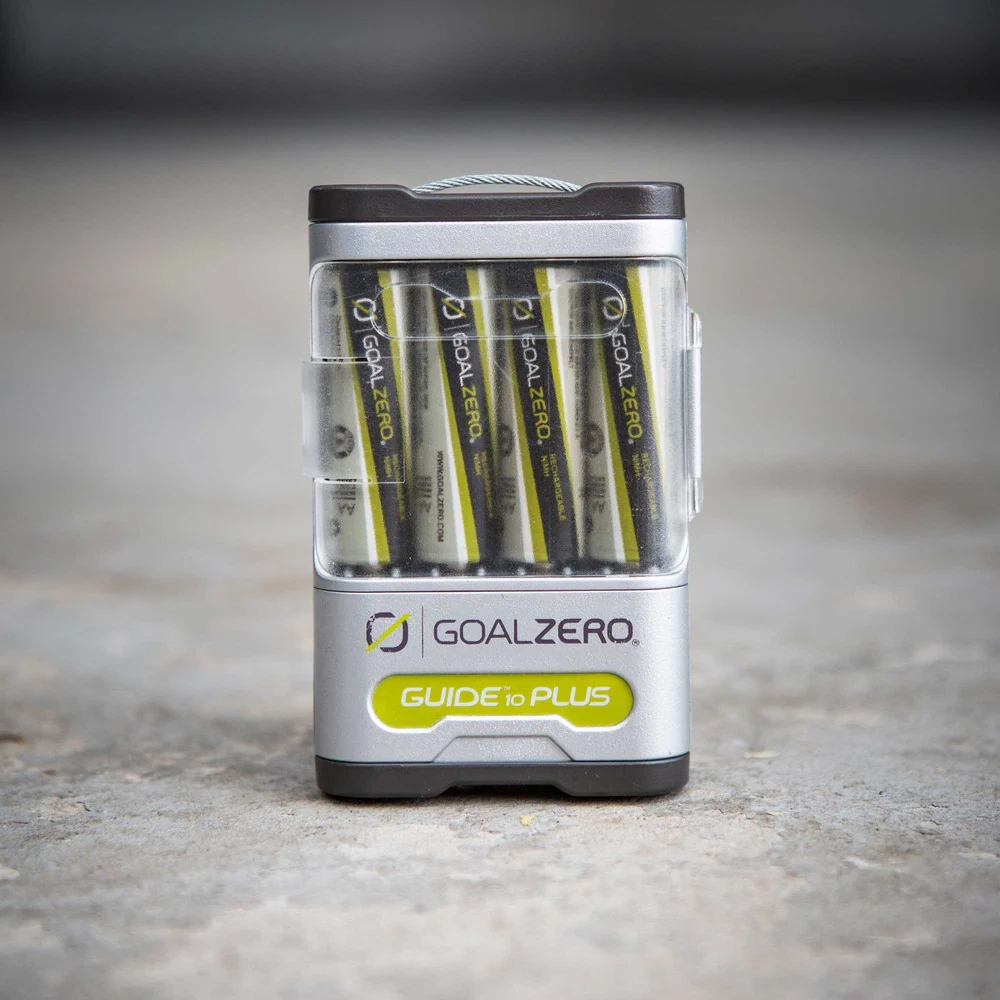

GUIDE 10 PLUS HIGHLIGHTS

• 2,300mAh Battery Pack
  Portable, rechargeable battery pack for power hungry gear. Includes a USB output for charging phones and boosting tablets.
• Removable, Rechargeable Batteries
  Use AAs for headlamps, flashlight, and remotes. Also works with other rechargeable NiMH batteries and includes AAA adapter.
• Light It Up
  Includes a built-in flashlight, handy for digging in any purse or backpack, and lighting up a hallway in a pinch.

TWO WAYS TO RECHARGE THE GUIDE 10 PLUS

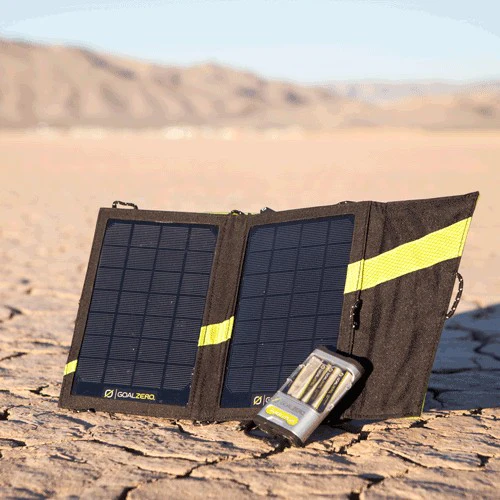

• Recharge the Guide 10 Plus from the sun by connecting a compatible solar panel in about 3-6 hours
• Charge up from a USB power source in about 6 hours

WHAT IT CHARGES

The Guide 10 Plus is perfect for all your smaller USB or AA/AAA powered gear.

Smartphone 50-100% Boost POV Camera 1-2 Recharges Headlamp 1-3 Recharges Tablet 25% Boost

WHAT'S IN THE BOX

• Guide 10 Plus
• 4 AA Rechargeable Batteries
• AAA Adapter
• USB Cord

tech

CHARGE TIMES

• USB Source: 6-10 Hours
• Nomad 7 Solar Panel: 3-6 Hours
• Nomad 7 Plus Solar Panel: 3-6 Hours
• Nomad 13 Solar Panel: 2.5-5 Hours
• Nomad 14 Plus Solar Panel: 6 Hours

GENERAL

• Product SKU: 21005
• Chainable: No
• Weight (w/batteries): 6.4 oz (181 g)
• Dimensions: 2.5 x 4 x 0.75 in (6.4 x 10.2 x 1.9 cm)
• Operating Useage Temp: 32-104 F (0-40 C)
• Certs: CE, FCC, ROHS
• Warranty: 6 months

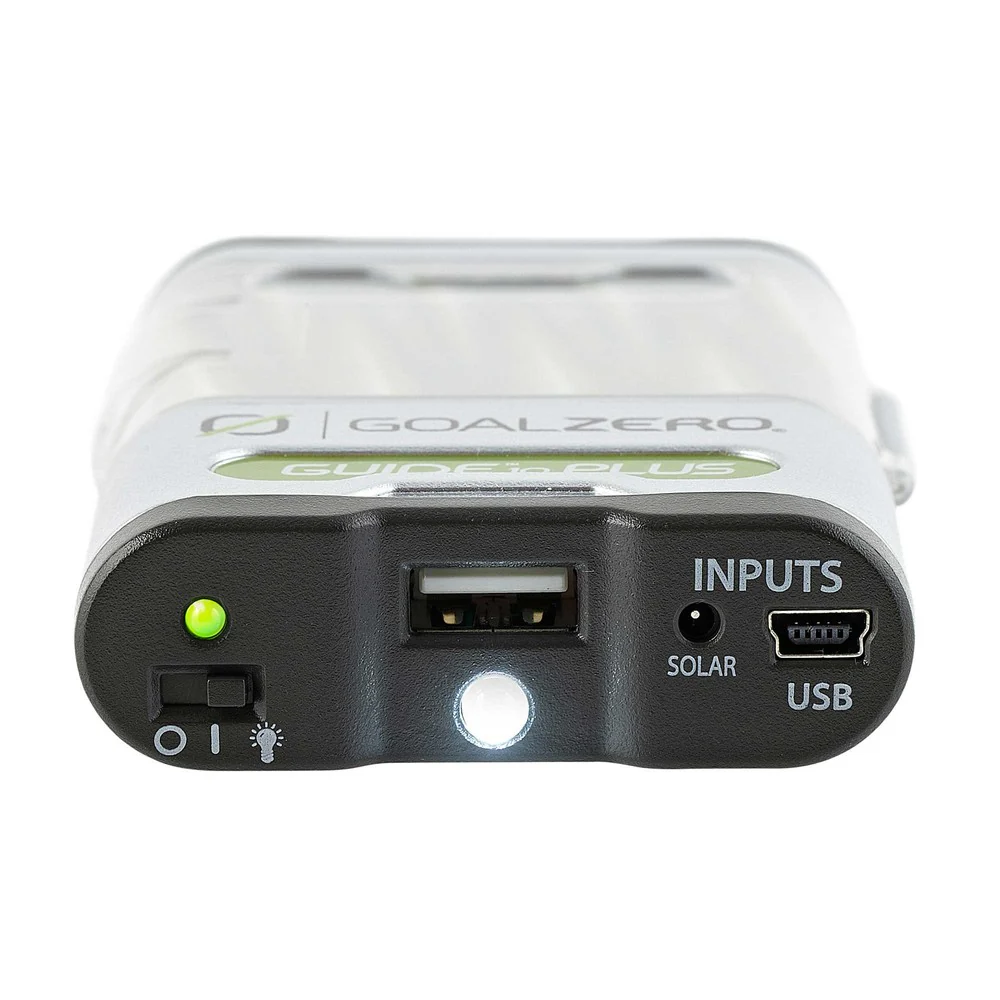

PORTS

• USB Port (output): 5V, up to 1A (5W max), regulated
• USB Port (input): 5V, up to 0.8A (4W max), regulated
• Mini Solar Port (input): 6.5V, up to 1.1A

BATTERY DETAILS

• Battery Type: NiMH
• Battery Size: 11Wh (4.8V, 2300mAh)
• Lifecycles: 500 cycles
• Shelf-Life: Keep plugged in or charge every 3-6 months
• Fuses: None
• Management System: Charging and low-battery protection built-in
