Recharge the Yeti 500X with the Boulder 100 Briefcase Solar Panel while off-grid and charge from a wall outlet when at home. Power laptops, cameras, drones, medical devices, portable fridges, and more while on the road or in case of an emergency outage.

box1

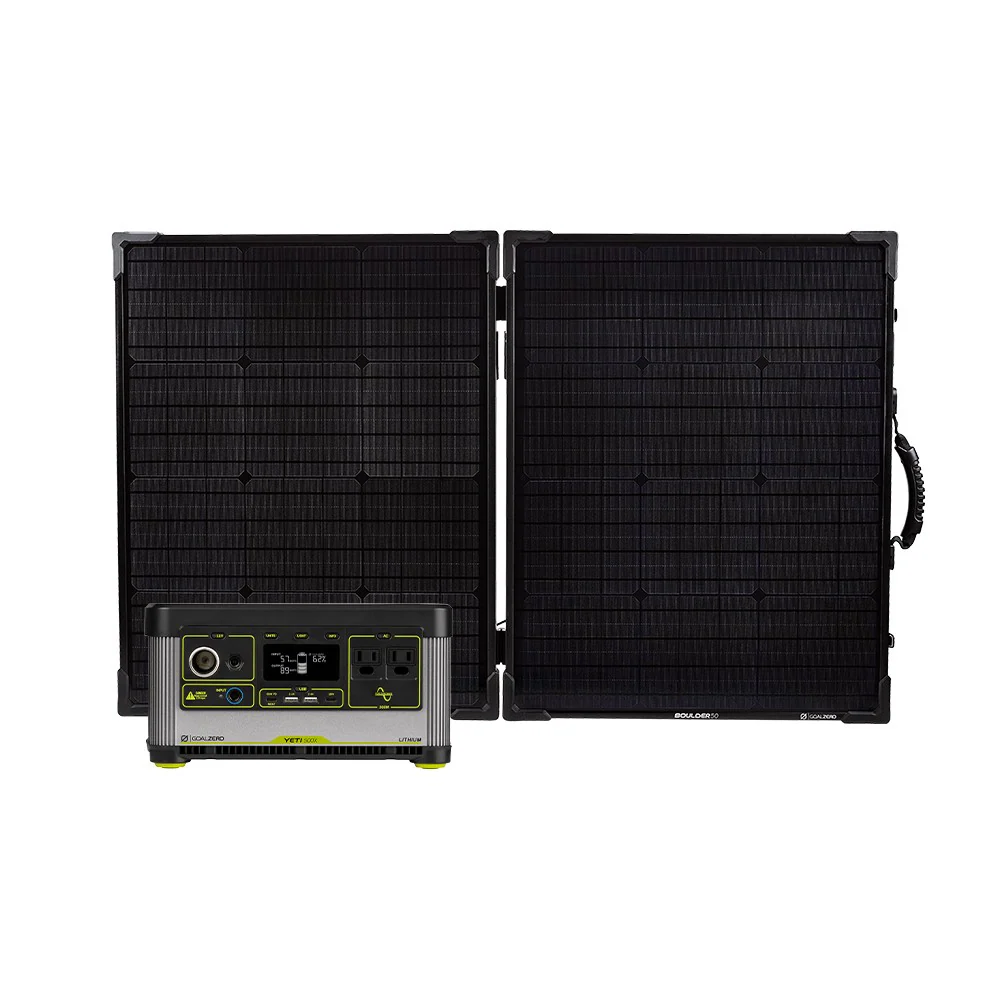

Yeti 500X + Boulder 100 Briefcase Solar Generator HIGHLIGHTS

This solar generator can recharge from the sun in as little as 6 hours.

Solar panels designed for more portable, rugged use, with durable aluminum frame.

A sustainable energy source with no noise and no fumes.

box2

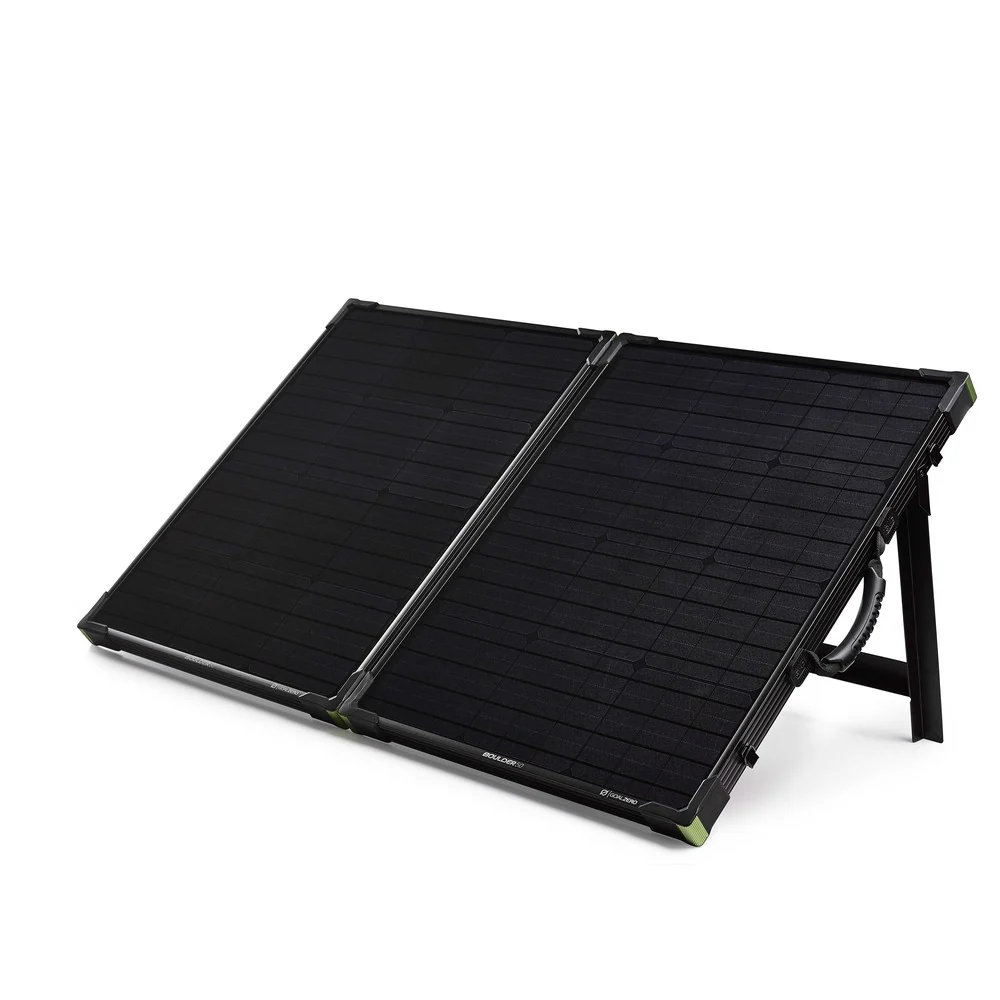

BOULDER 100 BRIEFCASE HIGHLIGHTS

100 total Watts - two 50-Watt panels (14-21.5V) chained together and connected by a hinge.

Built with strong tempered glass and an aluminum frame with added corner protection.

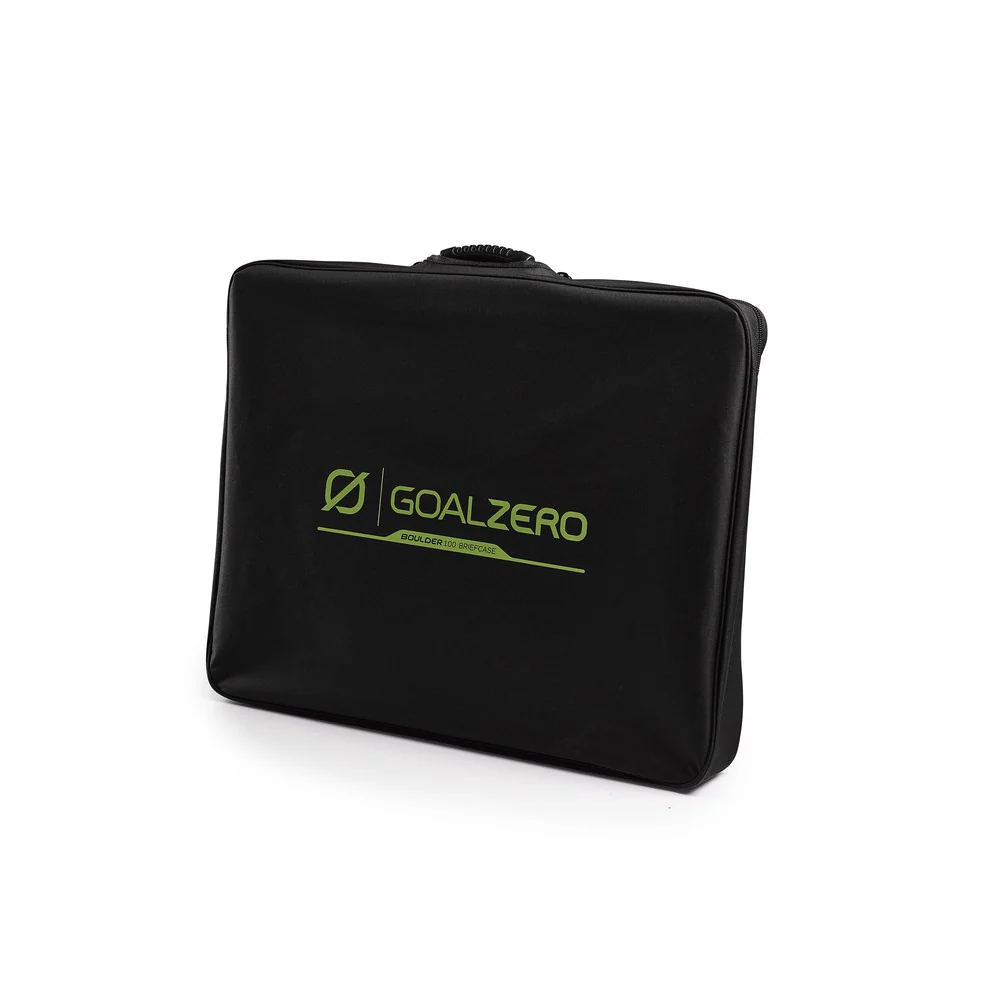

Included is a protective canvas bag for easy transport and carrying.

TIPS & TRICKS FOR USING SOLAR PANELS

• The solar panel does not hold a charge - it produces power when it is exposed to sunlight.

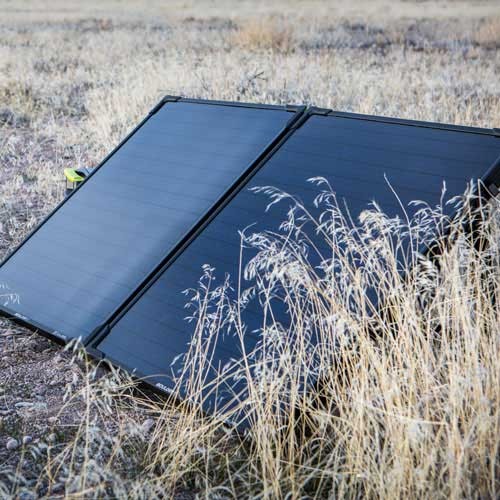

• Place solar panels towards the sun at an angle.
• Connect High Power Power to Yeti Power Station.
• Adjust solar panel as the sun moves across the sky.

box3

WAYS TO CHARGE THE YETI 500X

• FROM THE SUN
  Recharge from the sun by connecting a compatible solar panel, either the foldable Nomads or mountable Boulder solar panels. The higher the watts of the panel, the faster the charging times.
• FROM THE WALL
  Plug it into the wall using the included 60W power supply for a full recharge in just 10 hours, or plug in with the Yeti X 120W Power Supply to halve that charge time. You can also use any USB-C power supply to charge the power station.
• FROM THE CAR
  Plug into your vehicle's 12V outlet using the Goal Zero Yeti Lithium 12V Car Charging Cable NOTE: Do not attempt to charge your Yeti from a 12V source using any other cable. Doing so may cause damage to the unit.

features

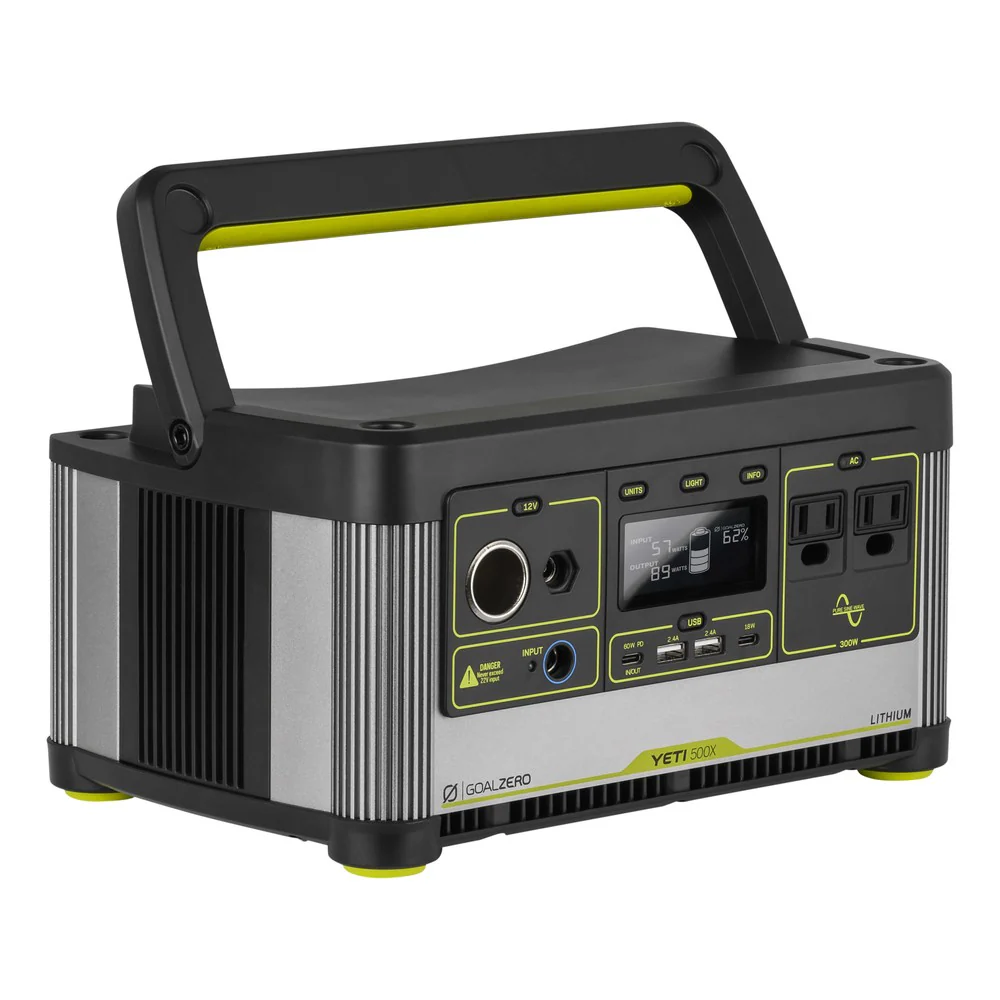

YETI 500X HIGHLIGHTS

Power a Wide Range of Devices

Yeti 500X is equipped with four different port options - including AC, 12V, and 60W USB-C PD - to power everything from phones to portable fridges.

High-Speed Charging Solution

Equipped with the latest charging technology, including a high-speed Power Delivery port capable of charging USB-C laptops, tablets, mirrorless cameras, and phones in a fraction of the time.

Experience Unlimited Power

Charge the Yeti 500X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Featured MPPT charge controller ensures you’re getting the most efficient solar charge possible.

BOULDER 100 BRIEFCASE HIGHLIGHTS

100 total Watts - two 50-Watt panels (14-21.5V) chained together and connected by a hinge.

Built with strong tempered glass and an aluminum frame with added corner protection.

Included is a protective canvas bag for easy transport and carrying.

WHAT CAN THE YETI 500X POWER?

Recharges
Smart Phone (12 Wh): 42
Tablet (30 Wh): 17
Laptop (50 Wh): 10
POV Camera (5 Wh): 101
DSLR Camera (18 Wh): 28
Head Lamp (5 Wh): 101

Hours of Runtime
Light-a-Life 350 (4.5 W): 112
Light Bulb (11 W): 46
CPAP (65 W): 8
TV (42" LED) (100 W): 5
Pellet Grill (60 W): 9
Portable Fridge (25 W): 20
WiFi Router (25 W): 20

WHAT'S IN THE BOX

• Yeti 500X Power Station
• Power Supply
• Boulder 100 Solar Panel Briefcase
• Canvas Case

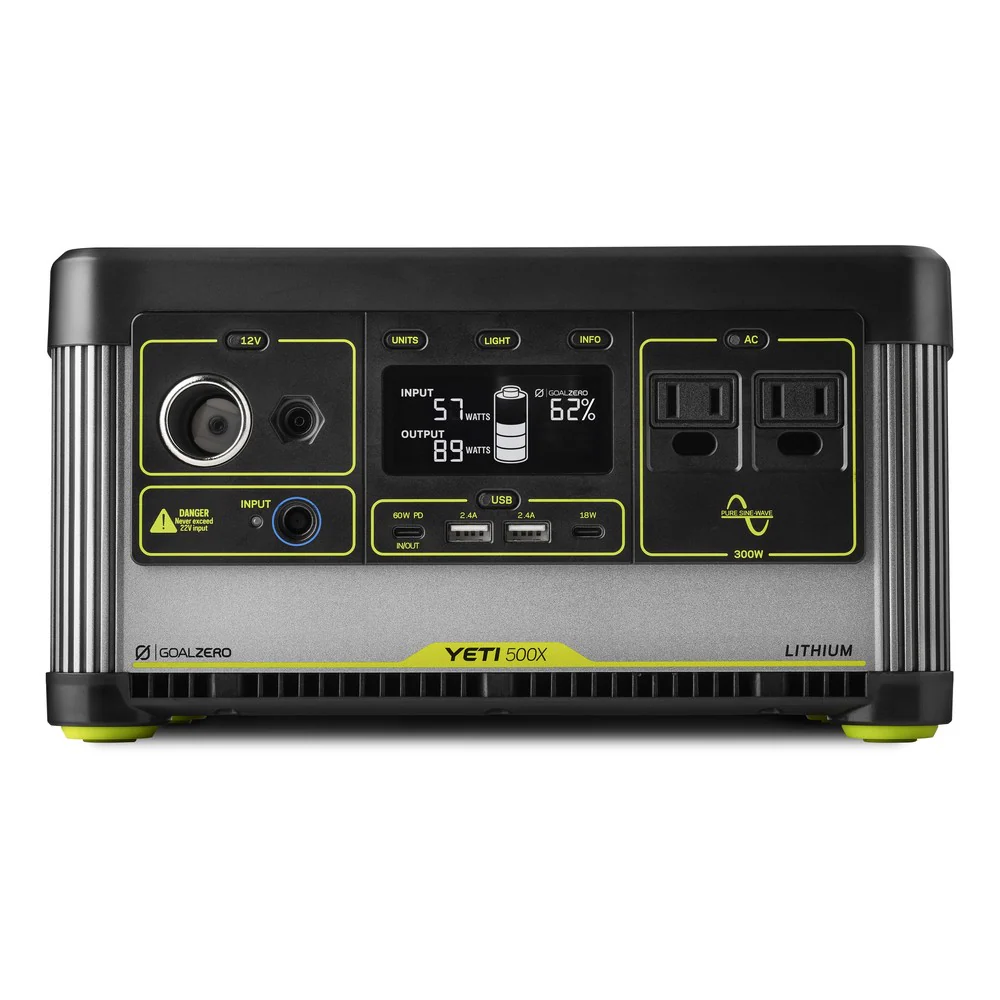

specs



1. 12V Car Port

   12V, up to 10A (120W max), Regulated

2. 6MM Output Ports


   12V, up to 10A (120W max)

3. 8MM Charge Port


   13-22V, up to 10A (150W max)


4. USB-C PD port

   5 - 20V, up to 3.0A (60W max), Regulated

5. (2X) USB-A Port

   5 V, up to 2.4A (12W max), Regulated

6. USB-C Port


   5-9V, up to 3.0A (18W max), Regulated


7. (2x) 120V AC Inverter

   120VAC 60Hz, 2.5A (300W, 1200W surge)
   (output, pure sine wave)

tech

Goal Zero Yeti 500X Portable Power Station

CHARGE TIMES

• Maximum input (180W): 3 hrs
• Car charger (120W): 4.5 hrs
• Wall charger (60W): 10 hrs
• Wall charger (120W): 4.5 hrs
• Nomad 20: 30-60 Hours
• Nomad 50: 12-24 Hours
• Boulder 50: 12-24 Hours
• Nomad 100: 6-12 Hours
• Boulder 100 Briefcase: 6-12 Hours
• Boulder 100: 6-12 Hours
• Boulder 200 Briefcase: 3-6 Hours

BATTERY DETAILS

• Cell chemistry: Li-ion NMC
• Pack capacity: 497Wh (10.8V, 46.8Ah)
• Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 0.2C, Full charge/discharge, Temp: 25C)
• Shelf-life: Charge every 3-6 months
• Management system: 'MPPT' charge controller, low battery protection

PORTS

• USB port (Output): 5V, up to 2.4A (12W max), regulated
• USB-C port (Output): 5/9V, up to 3.0A (18W max), Regulated
• USB-C PD port (Input/ Output): 5-20V, up to 3.0A (60W max), Regulated
• 6mm port (Output, 6mm): 12V, up to 10A (120W max)
• 12V car port (Output): 12V, up to 10A (120W max), Regulated
• 120V AC Inverter: 120VAC 60Hz, 2.5A (300W, 1200W surge) (output, pure sine wave)
• Charging port (input, 8mm): 13-22V, up to 10A (150W max)

GENERAL

• Kit SKU: 44507
• Chainable: No
• Simultaneous Recharge & Discharge: Yes
• Product SKU: 36100
• Weight: 12.9 lbs (5.85 kg)
• Dimensions: 7.5 x 11.25 x 5.8 in (19.05 x 28.58 x 14.73 cm)
• Operating usage temp.: 32-104 F (0-40 C)
• Warranty: 2 years

BOULDER 100 BRIEFCASE

CHARGE TIMES

• Yeti 200X: 2-4 Hours
• Yeti 400: 6-12 Hours
• Yeti 400 Lithium: 7-14 Hours
• Yeti 500X: 6-12 Hours
• Yeti 1000 Lithium: 16-32 Hours
• Yeti 1400 Lithium: 22-44 Hours
• Yeti 1000X: 12-24 hours
• Yeti 1500X: 18-36 Hours
• Yeti 3000 Lithium: 36-72 Hours
• Yeti 3000X: 36-72 Hours

GENERAL

• Product SKU: 32408
• Weight: 25.9 lbs (11.7 kg)
• Dimensions (folded): 26.75 x 21.75 x 3.75 in (70 x 55.2 x 8.9 cm)
• Dimensions (unfolded): 26.75 x 43.5 x 1.75 in (70 x 110.4 x 4.4 cm)
• Cable Length: 6ft
• Warranty: 2 years

PORTS

• Solar Port (blue, 8mm): 14-21.5V, up to 7A (100W max)
